Description
Key benefits
 |
 |
 |
| Extended tiller The ergonomically extended tiller ensures comfortable and efficient work, while keeping the operator at a safe distance. |
Premium brand components German KORDEL gearbox, INTORQ brakes, WICKE steering wheel, Italian ZAPI controller for high performance and stability and reduced maintenance costs |
Robust and reliable design The sturdy 8 mm thick cover protects the chassis, battery and internal components of the pallet truck from external mechanical impact. |
 |
 |
 |
| Side switch The side-mounted lift/lower buttons make it easier for the operator to lower/lift loads when the height of the load needs to be adjusted laterally. |
Convenient maintenance The choice of internal components and the design of the stacker was aimed at facilitating maintenance. By removing the one-bolt cover, not only all parts but also the steering and support wheels can be replaced. |
Static design of the hydraulic system The hydraulic systems are stationary during lifting, while the forks and support legs ensure the stability of the hydraulic system during lowering. |
 |

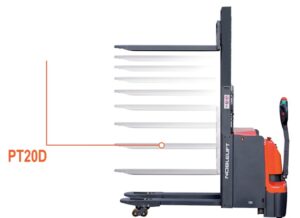

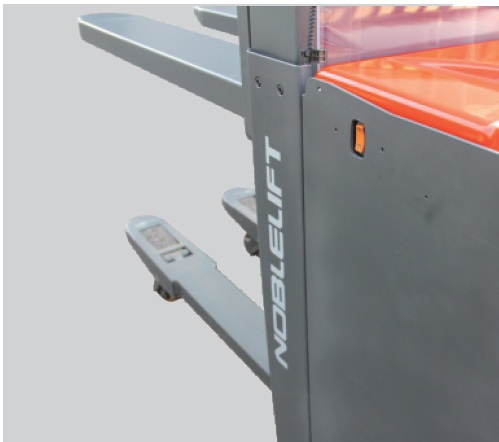

Double lift function With its double lifting function, the lift is twice as efficient as a conventional pallet truck or stacker. The support forks have greater clearance, allowing safe operation over thresholds, ramps and uneven floors. The low height of the lift gives the operator good visibility. |
|
Electronic proportional raising and lowering
Electronically controlled proportional hydraulic lifting system allows precise and gentle control of the lifting and lowering functions at any required operating point
Technical specification
| General parameters | 1.2 | Model | PT 20D | ||
| 1.3 | Power type | Battery | |||
| 1.4 | Operator type | Pedestrian (walk-behind) | |||
| 1.5 | Rated capacity | Q ( t) | 2.0 | ||
| The power of the raised mast | Q ( t) | 1.0 1) | |||
| Lift capacity with raised support forks | Q ( t) | 2.0 1) | |||
| 1.6 | Load centre | C ( mm) | 600 | ||
| 1.8 | Load distance | X (mm) | 916 | ||
| 1.9 | Wheel base | Y (mm) | 1532 | ||
| Weights | 2.1 | Service weight | kg | 1010 | |
| 2.2 | Axle load front/rear (loaded) | kg | 890/2120 | ||
| 2.3 | Axle load front/rear (unladen) | kg | 658/352 | ||
| Tyres, chassis | 3.1 | Castors | Polyurethane (PU) | ||
| 3.2 | Wheel size, front | φ x w (mm) | φ230 x70 | ||
| 3.3 | Wheel size, end | φ x w (mm) | φ 80×70 | ||
| 3.4 | Additional wheels (dimensions) | φ x w (mm) | φ100×40 | ||
| 3.5 | Number of wheels front/rear (X - drive wheels) | 1x+2/4 | |||
| 3.6 | Track width, front | b10 (mm) | 510 | ||
| 3.7 | Rear track | b11 (mm) | 380 | ||
| Basic dimensions | 4.2 | Lowered mast height | h1 (mm) | 1378 | |
| 4.4 | Lifting height | h3 (mm) | 1600 | ||
| 4.5 | Extended mast height | h4 (mm) | 2728 | ||
| 4.6 | Initial lift | h5 (mm) | 120 | ||
| 4.9 | Height of tiller in working position min/max. | h14 (mm) | 800/1335 | ||
| 4.15 | Lowered fork height | h13 (mm) | 88 | ||
| 4.19 | Total length | l1 (mm) | 1940 | ||
| 4.20 | Length without forks | l2 (mm) | 790 | ||
| 4.21 | Overall width | b1 (mm) | 729 | ||
| 4.22 | Fork dimensions | s/e/l (mm) | 60 / 180 / 1150 | ||
| 4.25 | Fork width | b5 (mm) | 560 | ||
| 4.32 | Ground clearance at wheelbase centre | m2 (mm) | 28 | ||
| 4.33 | Aisle width with 1000×1200 mm pallet crossways | Ast (mm) | 2140 | ||
| 4.34 | Aisle width with 800×1200 mm pallet lengthways | Ast (mm) | 2190 | ||
| 4.35 | Turning radius | Wa (mm) | 1682 | ||
| Operating parameters | 5.1 | Travel speed, loaded/unloaded | km/h | 6.0/ 6.0 | |
| 5.2 | Lifting speed, loaded/empty | mm/s | 85/140 | ||
| 5.3 | Lowering speed, loaded/empty | mm/s | 80/65 | ||
| 5.8 | Maximum climb, loaded/empty | % | 20-rugp | ||
| 5.10 | Service brakes | Electromagnetic | |||
| Motors, drives | 6.1 | Drive motor power S2 60 min | kW | 1.3 | |
| 6.2 | Lift motor power at S3 10% | kW | 2.2 | ||
| 6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | No, 3VBS | |||
| 6.4 | Battery voltage, capacity | V/Ah | 24/ 205 | ||
| 6.5 | Battery weight | kg | 185 | ||
| 6.6 | Energy consumption | kWh/h | 1.0 | ||
| Others | 8.1 | Drive motor control type | AC - speed control | ||
| 8.4 | Noise level in the operator's ear according to EN 12053 | dB(A) | <70 | ||
| 1) the total load capacity remains the same: 1000 kg + 1000 kg = 2000 kg | |||||

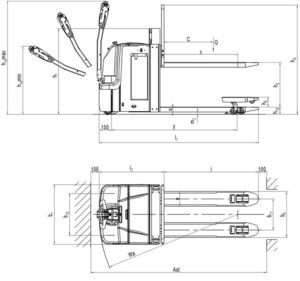

Drawing
