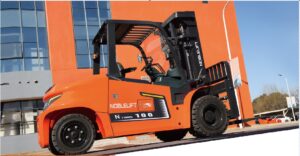

Noblelift FEP100N2: lifts up to 10 tonnes and up to 4500 mm, push with positioner, 2.4 m forks, 80V920Ah Li-battery, mini-lever control, cab

The Noblelift FEP100N2 is a powerful classic electric forklift with dual front wheels, 2 drive motors, battery charging capability with 2 chargers (second charger on separate order), hydraulic (non-serviceable) brakes

  • Lifting up to 10 tonnes (centre of gravity 600 mm), lifting height up to 4500 mm, with positioner and 2400 mm long forks
  • With a fully heated metal cab and a comfortable (all-way adjustable and shock absorbing) seat
  • Hydraulic control – mini levers (electronic)
  • Powerful lithium iron phosphate 80V920Ah battery. The battery has heating during charging
  • Full lighting set, Blue Spot warning light
  • Photos are for illustration purposes only

90750,00 € (including VAT: 109807,50 €)

Available on backorder

Available on backorder

Delivery time: 1.5 - 2.5 weeks

SKU: FEP100N2_20 Category: Brand:

Description



Smart safety

  1. Intelligent automatic parking: regenerative braking system design, active parking in a variety of situations, and a rear-view camera as standard for safety and peace of mind.

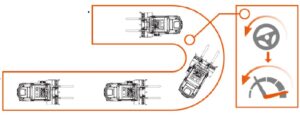

  2. Intelligent cornering speed limit: active speed limit function, balancing efficiency and safety in high-speed corners.
  3. Smart Boundary Bumper: raising and lowering the mast with a smart sensor for safety and comfort.
  4. Intelligent operation protection: the entire OPS system, ensuring safety in the absence of the operator
  5. Smart control strategy: dual-core controllers, compliant with the latest EU safety standards

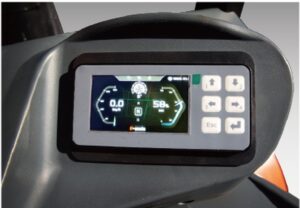

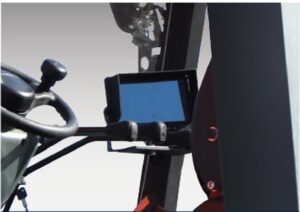

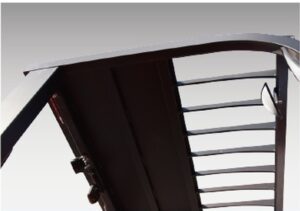

As standard, the forklift comes with a rear-view camera, which significantly improves safety. Safety is ensured by a cab with a sturdy frame structure The colour display shows essential information such as forklift speed, operating hours, battery charge, fault codes, etc.

High efficiency and energy savings

Powerful dual drive, imported motors and oil brakes not only add power, but also make the forklift even safer and more stable.

Two charging sockets for fast and efficient charging

The Lithium Battery Forklift has a dual-socket charging, which significantly reduces charging time. Supplied with a high-capacity lithium battery for flexible charging and work schedules, reliable all-weather operation and uninterrupted operation - the perfect choice for demanding conditions.

Lots of options, low energy consumption.

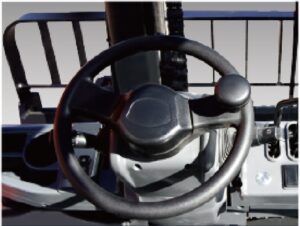

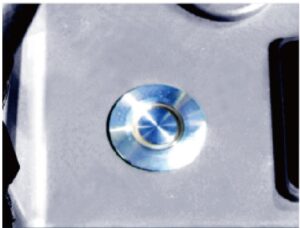

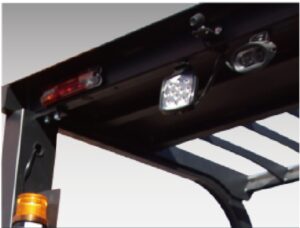

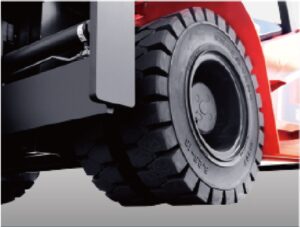

The parking brake button flashes in different colours in parking and driving modes, making operation much easier. The LED bulbs used are brighter, more durable and contribute to energy savings. The independent steering system and on-demand oil wastage significantly reduce energy consumption. Dual front wheels for higher lifting capacity

Technical specification

General parameters 1,1 Manufacturer Noblelift
1,2 Model FEP
1,21 Full model and series designation FEP-100N2Y
1,3 Power type Electric
1,4 Operator type Seated
1,5 Rated capacity Q(kg) 10000
1,6 Load centre C(mm) 600
1,8 Load distance x(mm) 670
1,9 Wheel base y(mm) 2580
Weights 2,1 Service weight kg 14100
2,2 Axle load front/rear (loaded) kg 2050
2,3 Axle load front/rear (unladen) kg 7080
Tyres, chassis 3,1 Tyres Non-marking solid
3,2 Rear tyres 8.25-15
3,3 Front tyres 250-15
3,5 Number of wheels front/rear (X - drive wheels) 4X/2
3,6 Front track b10(mm) 1686
3,7 Rear track b11(mm) 1370
Basic dimensions 4,1 Mast tilt α/β(°) 6/6
4,2 Lowered mast height h1(mm) 2845
4,3 Free lift h2(mm) 1625
4,4 Lifting height h3(mm) 4500
4,5 Extended mast height h4(mm) 5839
4,7 Overhead guard height h6(mm) 2510
4,8 Seat height h7(mm) 1357
4,12 Towing pin height h12(mm) 467
4,19 Total length l1(mm) 5015
4,2 Length without forks l2(mm) 3795
4,21 Overall width (frame/tyres) b1(mm) 2165
4,22 Fork dimensions s/e/l(mm) 80x175x2400
4,24 Fork carriage width b3(mm) 2165
4,31 Ground clearance under mast m1(mm) 225/205
4,32 Ground clearance at wheelbase centre m2(mm) 246/236
4,33 Aisle width with 1000×1200 mm pallet crossways Ast(mm) 5210
4,35 Turning radius Wa(mm) 3350
Operating parameters 5,1 Travel speed, loaded/unloaded km/h 14/15
5,2 Lift speed, loaded/unloaded mm/s 290/340
5,3 Lowering speed, loaded/unloaded mm/s 460/360
5,5 Max. drawbar pull, loaded/unloaded N 48400
5,7 Max. gradeability, loaded/unloaded % 15
5,1 Service brakes Hydraulic
Motors 6,1 Drive motor power S2, 60 min kW 2×16.6
6,2 Lift motor power S3, 15 min kW 2×25
6,3 Battery Lion
6,4 Battery voltage and capacity V/Ah 80/1216
6,5 Battery weight(80V/1216Ah)  kg 857
6,6 Battery dimensions mm 1280/1034/640
Others 8,1 Drive motor control type PSMS
8,2 Hydraulics working pressure Mpa 14
8,3 Hydraulic tank capacity l/min 74
8,4 Noise level in the operator's ear according to EN 12053  dB(A) 75

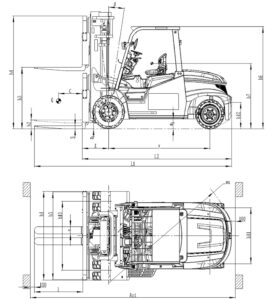

 Drawing

Additional information

Weight 14100 kg
Dimensions 3795 × 2165 × 4500 mm
Manufacturer
Noblelift
Type
Forklift
Model
FEP100N2
Lifting capacity (kg)
10000
Lifting height (mm)
4500
Lowered mast height, mm
2845
Free lift, mm
1625
Mast type
Triguba
Hydraulics control
Mini levers (electronic)
Turning radius, mm
3350
Aisle width (Ast), mm
5210
System voltage, V
80V
Battery type
Lithium
Battery capacity, Ah
920
Fork length (mm)
2400
Drive
Curtis
Tyres
Non-marking solid
Hydraulic functions
4 (all used)
Cabin options
Load protection frame only
