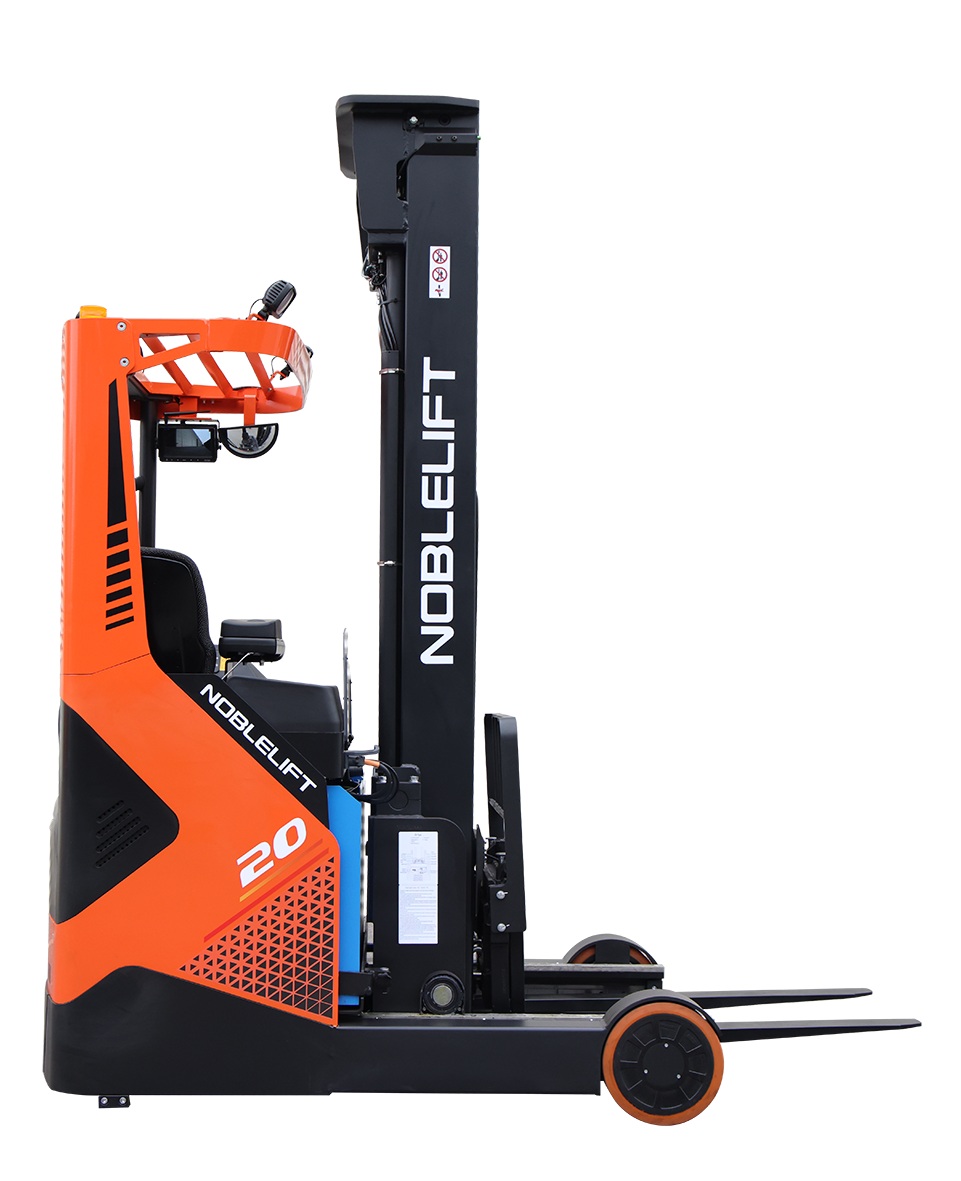

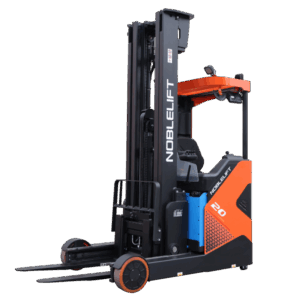

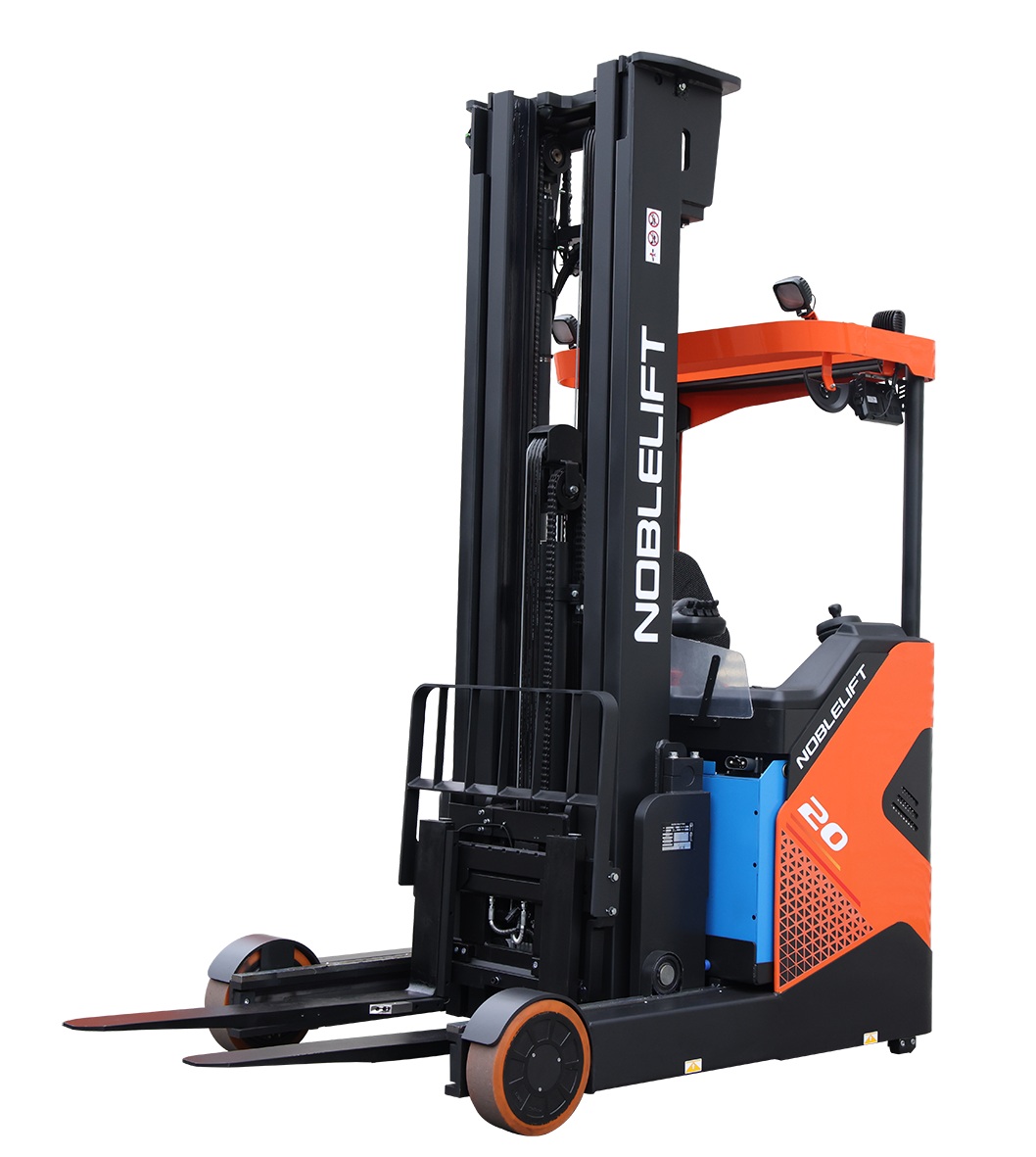

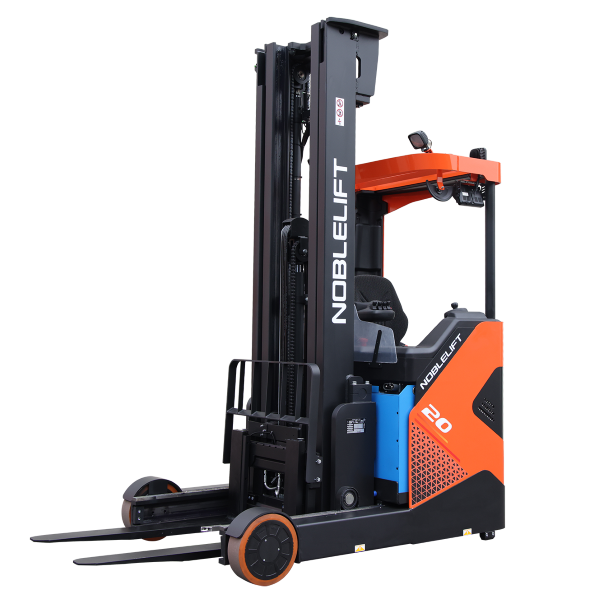

Noblelift RT20G - with 76.8V300Ah lithium battery

RT20G - designed for heavy-duty use with a powerful 76.8V300Ah lithium battery, powerful motors, ergonomic design and a host of safety features

  • Lifting capacity - 1600 kg up to a height of 6500 mm.
  • Battery - 76.8VV300Ah lithium iron phosphate
  • Hydraulics control via mini levers (fully electronic proportional control)
  • Electrical system - AC, all motors - AC
  • With sideshift, full set of lights
  • Working corridor for full turn-around - ~ 2900 mm
  • Gearbox – German ZF GK 30
  • Grammer seat
  • Automatic fork alignment and centring

27950,00 € (including VAT: 33819,50 €)

Available on backorder

Available on backorder

Delivery time: 2 - 3 weeks

SKU: RT20G Category: Brand:

Description

Sustainability

The RT20G is specifically designed for indoor storage, featuring a zero-emission lithium battery design that perfectly meets the needs of confined space operations.

A space-saving efficiency revolution

Thanks to its ultra-compact body design, it easily handles narrow passages.

Despite its compact size, it can easily lift loads of 2.0 tonnes and reach a lifting height of 6.5 metres (heights of up to 9.5 metres are available on request from the factory)

Comprehensive efficiency improvements

Extremely fast: lifting speed at full load reaches 450 mm/s, lowering speed reaches 500 mm/s and maximum travel speed reaches 14 km/h.

Under challenging working conditions, efficiency exceeds the average of competing products by 40%, and the amount of work done per shift can increase by up to 25%.

Top-level performance configuration

Equipped with an 80V full AC drive system, electric steering and a high-performance German transmission, as well as a Curtis controller for flexible steering and excellent driveability, combining power and endurance.

Electronic power steering is standard across the range.

Cost-effective

Compared to other similar models, the maintenance interval has been extended by 50% and the total energy consumption has been reduced to 35%.

Height limit function: automatically stops the lifting motor when the fork reaches its maximum height, preventing over-lifting and ensuring safety.

Cornering speed control: automatically limits speed when cornering to prevent rollovers or tipping and to ensure stability when cornering.

Engine temperature monitoring: real-time monitoring of engine temperature to prevent overheating.

Motor current monitoring: real-time monitoring of motor current to prevent damage caused by excessive current.

Electromagnetic and hydraulic braking: Combining electromagnetic and hydraulic braking to ensure short stopping distances, no drift and no impact, ensuring safety and reliability.

Parking electromagnetic brake: supports one-click parking on slopes and flat ground, making operation simple and convenient.

Wide visibility and spacious driver's compartment Integrated automated sideshift
Grammer fully shock-absorbing seat with elastic shock absorption Electrically adjustable pedals



High-efficiency lithium battery 76.8V Motor cooling system Multifunctional colour display Centralised fingertip control panel Fork alignment and centring buttons
Multifunctional password panel and 180°/360° control switching button High-definition camera system Hydraulic hoses and pipes in the central part Extra-large metal profile mast LED work and blue light kit

Technical specification

Model RT20G
Lifting kg 2000
Free lift mm 2230
Lifting height mm 6500
Total length mm 2525
Overall width mm 1270
Turning radius mm 1767
Travel speed km/h 14/14
Lifting speed m/s 0.45/0.58
Drive motor kW 8.1
Lift motor kW 20
Battery voltage/capacity V/Ah 76.8/300

Additional information

Weight 3935 kg
Dimensions 2525 × 1270 × 2900 mm
Manufacturer
Noblelift
Type
Stacker
Model
RT20G
Lifting capacity (kg)
1600
Lifting height (mm)
6500
System voltage, V
80V
Battery type
Lithium
Battery capacity, Ah
300
Mast type
Triguba
Fork length (mm)
1200
Steer wheels
Polyurethane
Fork wheels
Polyurethane
Drive
CURTIS
Hydraulic functions
4 (all used)
Hydraulics control
Mini levers (electronic)
Cabin options
Load protection frame only
