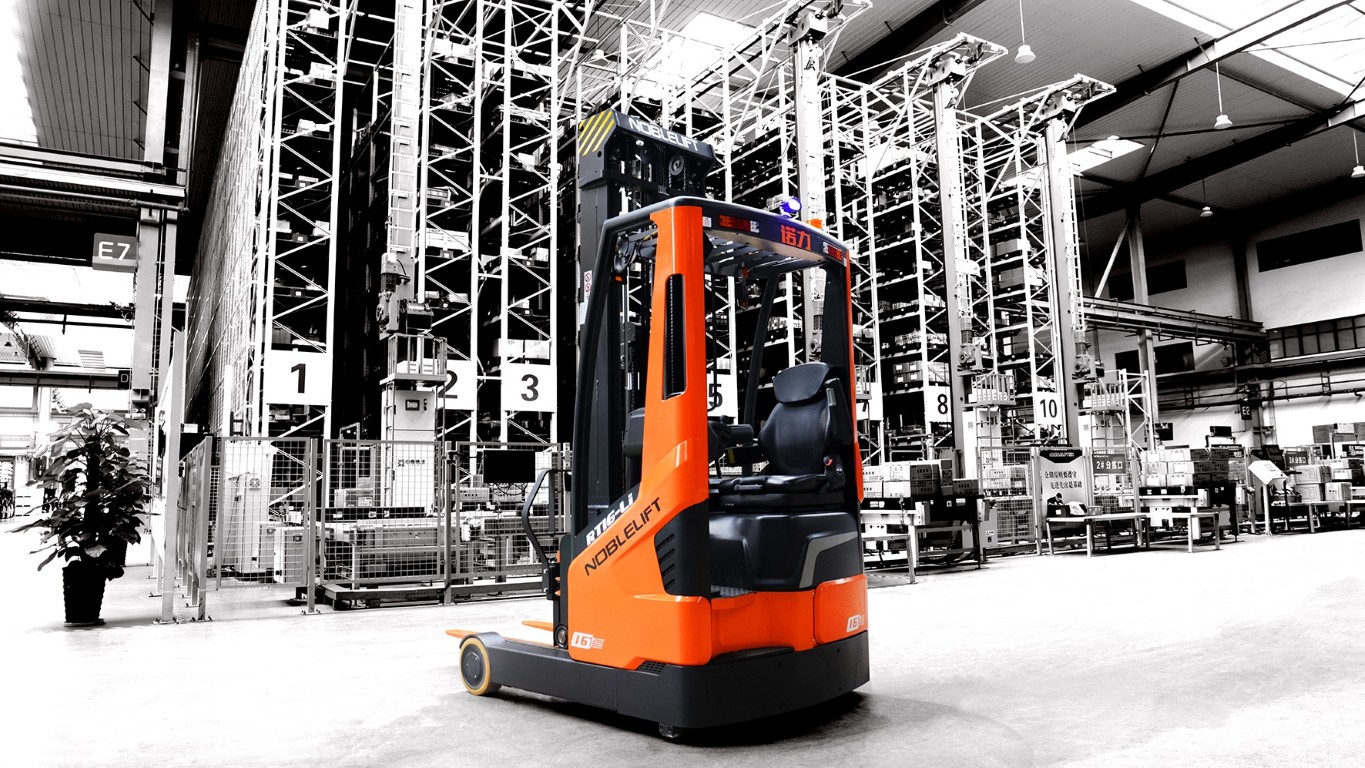

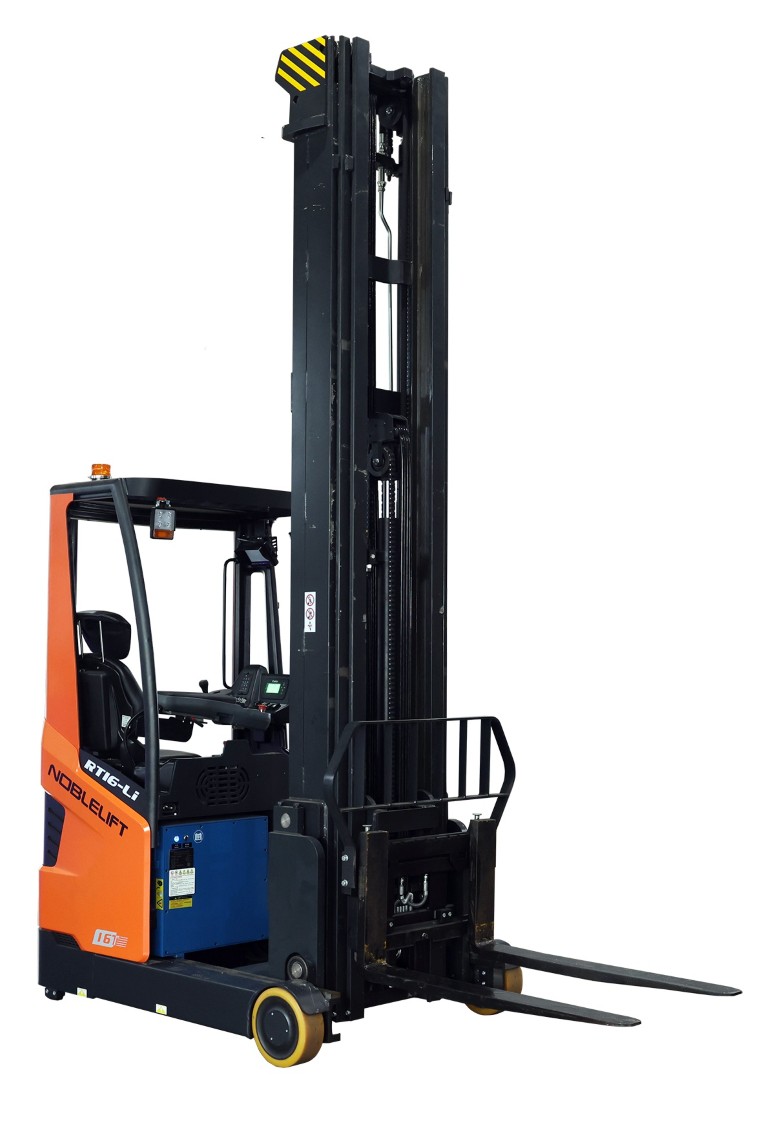

RT16Li - high performance stacker with lithium iron phosphate battery
This is a uniquely designed RT 16Li with lithium battery. For safety, the cab has four columns that transition into the frame. A wide field of vision and shock-absorbing operator seats ensure comfortable operation. German 6.4kW three-phase AC motors and US-made electric drives ensure high stacking power and smoother acceleration and braking. It has electric power steering for comfortable operation and a quick-switching 180/360 degree steering mode. The control armrest - as well as the German-made thumb and fingertip-controlled central console - ensures working efficiency and steering quality. The multi-function LCD display shows steering position, battery charge, error codes, operating time, driving speed and other information. The RT16Li has a fully shock absorbing and adjustable Grammer seat. It has a very high elasticity and shock absorption, so the operator feels less vibration. The seat position can be adjusted to the operator's height and body proportions, and the comfortable car-like backrest reduces operator fatigue. The lithium battery used in the machine can be quickly recharged and used for several shifts, depending on the requirements. The steering wheel and centre console can be adjusted to suit the operator's driving habits.
High efficiency guarantees high productivity

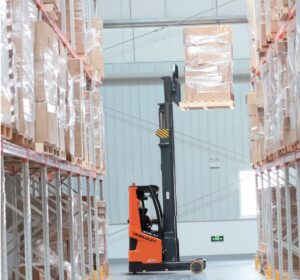

AC and variable frequency speed control technology allows you to drive, lift and steer smoothly - closed-loop speed control that is precise and reliable. The electro-hydraulic proportional lifting control system, good driving performance, more stable operation and more precise control - the RT16Li has it all.
 |
 |
 |
| Running speed 10.5km/h | Maximum climb with maximum load 10% | Turning radius only 1650 mm |
 |
 |
 |

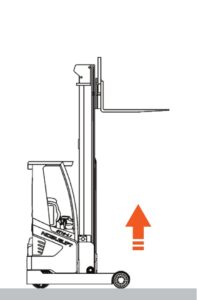

| Lifting speed - 0.5 m/s | Lifting speed with load - 0.4 m/s | High lifting power at maximum lifting heights |
Just enjoy your work!
 |
 |
 |

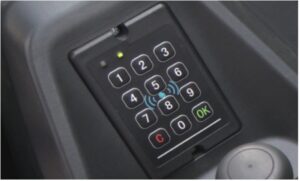

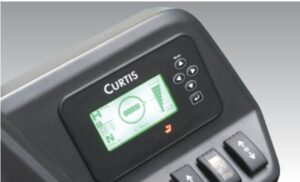

| The multi-function LCD display shows steering wheel position, battery charge, error codes, operating time, driving speed and other information. | The West password lock is unlocked manually by entering a code or swiping a card, which greatly simplifies the authorisation process, especially when working multiple shifts. | Multifunctional and extremely comfortable German armrest with thumb button (direction) and fingertip mini-lever (hydraulics) controls, as well as steering mode switching and horn buttons. |
 |
 |
 |

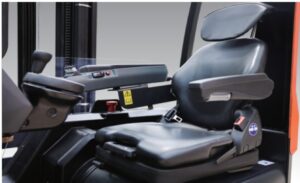

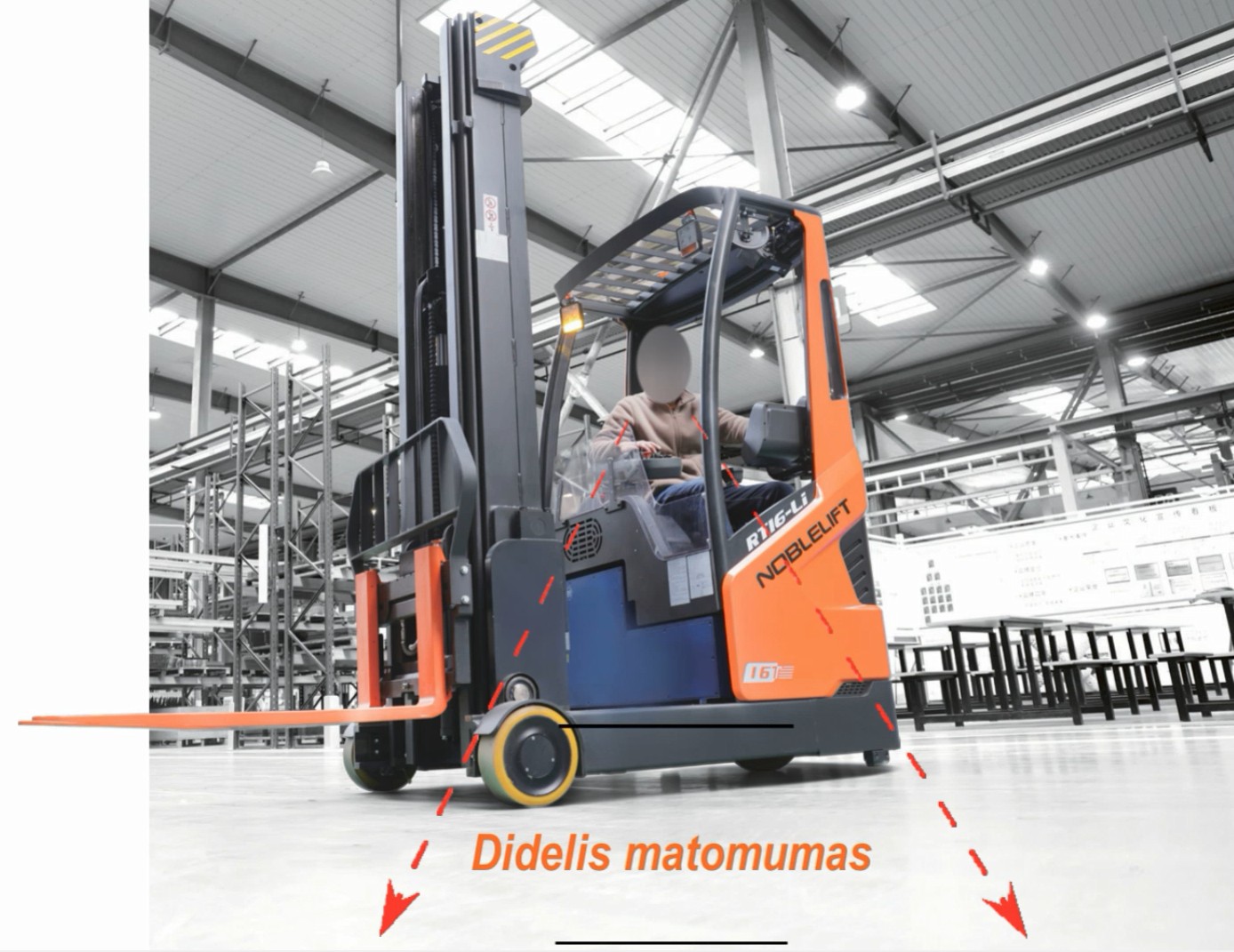

| Ample legroom will allow any operator to work comfortably and ensure comfort throughout the entire job. | The seat has very high elasticity and shock absorption, so the operator feels less vibration. The seat position can be adjusted to the operator's height and body proportions; a comfortable car-type backrest reduces operator fatigue. | The wide field of vision, ample space and ergonomics provide comfort for the operator. |
Intelligent security features
Height limit function:
When the forks are at maximum lift, the lifting motor switches off automatically, ensuring safety.
Limiting the turning speed:
Slowing down the speed of the stacker during a turn prevents it from overturning.
Engine temperature monitoring:
Avoids engine overheating and engine failure.
Motor current control:
Prevents damage due to excessive motor current.
Electromagnetic and hydraulic brakes:
The combination of electromagnetic and hydraulic brakes gives the roller a shorter stopping distance without deviations. Safe and reliable.
Electromagnetic parking brake:
It can be used on both ramps and flat surfaces at the touch of a button.
 |
 |
 |
 |
| Thanks to the very precise forward-sliding rails and the backlash compensation, the boom remains stable during lifting. | Stability is ensured by a robust chassis design and centre of mass distribution | The high-definition monitoring system allows real-time monitoring of loads. | |
Benefits of a lithium battery
Fast charging. Charge the battery whenever you need it
- The unique fast-charging function of the lithium iron phosphate battery makes it the ideal choice for multi-shift work. Compared to a traditional lead-acid battery, there is no need to change batteries between shifts or to prepare a spare battery and a dedicated charging point for lithium battery powered forklifts. Fast charging allows the battery to be recharged with breaks between jobs, which significantly extends the working life of the forklift. In addition, the lithium battery has no memory of charging cycles, which does not affect its lifetime. Due to the environmentally friendly properties of the lithium battery, the lithium charger no longer needs to be stored in a dedicated location, which offers much greater flexibility.
Environmentally friendly
- The lithium battery is an environmentally friendly solution. It does not produce acid, odour or pollutants during charging. Lithium battery-powered forklifts are relatively quiet and do not emit carbon dioxide. This makes lithium battery powered forklift trucks the ideal choice for environmentally conscious industries such as food processing, chemical and pharmaceutical industries.
- One battery is enough for each lithium battery-powered stack, as it can be recharged quickly, regardless of the number of shifts. In addition, a lithium battery has three times the lifespan of a lead-acid battery. Lithium batteries are maintenance-free and offer a much better cost/performance ratio than liquid electrolyte lead-acid batteries.
SAFETY. Efficient, maintenance-free
- The lithium battery 35 % reduces energy consumption, does not require a dedicated charging point and does not require battery maintenance. It saves space and there is no need for additional facilities for removing batteries from the stack, ventilated rooms and the liquid filling unit.
- The lithium battery system consists of a high-security, high-density lithium iron phosphate battery, an intelligent battery management system (BMS), a thermal management system and an automotive HVDC control system. The BMS allows communication between the lithium battery and the controller, the truck itself, the charger and the remote control platform, and real-time monitoring of the lithium battery status, stack operation and charging status to maximise the safety and reliability of lithium batteries.
- Another very important point is that the battery box itself (the metal casing) is resistant to natural fires, which increases operational safety enormously.
Technical parameters
| General parameters | 1,1 | Manufacturer | NOBLELIFT | ||
| 1,2 | Model | RT16Li | |||
| 1,3 | Type of power plant | Electric | |||
| 1,4 | Control type | Operated from the seat | |||
| 1,5 | Lifting power | Q | kg | 1600 | |
| 1,6 | Centre of gravity | c | mm | 600 | |
| 1,8 | Load arm, centre of the distance from the support leg wheel to the back of the forks | x | mm | 310/174 | |
| 1,9 | Wheel base | y | mm | 1400 | |
| Weights | 2,1 | Kerb weight with battery | kg | 3730 | |
| 2,3 | Axle load, lowered boom without weight, steerable/support leg wheels | kg | 2200/1530 | ||
| 2,4 | Axle load, raised boom with weight, steerable/sprung leg wheels | kg | 620/4710 | ||
| 2,5 | Axle load, lowered boom with weight, steerable/sprung leg wheels | kg | 1820/3510 | ||
| Wheels | 3,1 | Steered/foot wheel | PU | ||
| 3,2 | Front wheels, size | 343 x140 | |||
| 3,3 | Rear wheels, size | 285 x 110 | |||
| 3,5 | Number of wheels front/rear (X - drive wheels) | 1x/2 | |||
| 3,7 | Rear track | b11 | 1160 | ||
| Dimensions | 4,1 | Tilt of the jib | α/β | degrees | 4°/-2° |
| 4,2 | Height of lowered boom | h1 | mm | 2900 | |
| 4,3 | Free lifting | h2 | mm | 2230 | |
| 4,4 | Lifting height | h3 | mm | 6500 | |
| 4,5 | Height of raised boom | h4 | mm | 7410 | |
| 4,7 | Height of protective frame | h6 | mm | 2200 | |
| 4,8 | Seat height | h7 | mm | 960 | |
| 4,10 | Height of supporting legs | h8 | mm | 270 | |
| 4,15 | Height of lowered forks | h13 | mm | 40 | |
| 4,19 | Total length | l1 | mm | 2475 | |
| 4,20 | Length without forks | l2 | mm | 1325 | |
| 4,21 | Overall width | b1 | mm | 1270 | |
| 4,22 | Fork dimensions | s/e/l | mm | 35/100/1150 | |
| 4,23 | Forklift ISO 2328, class/type A, B | 2/A | |||
| 4,25 | Fork width | b5 | mm | 200-740/200-818 | |
| 4,26 | Distance between support legs | b4 | mm | 900 | |
| 4,28 | The course of the boom | l4 | mm | 485 | |
| 4,31 | A projectile under an arrow, with a weight | m1 | mm | 90 | |
| 4,32 | Clearance at the centre of the wheel base | m2 | mm | 75 | |
| 4,33 | Working corridor with pallet 1000×1200 mm taken across | Ast | mm | 2770 | |
| 4,34 | Working corridor with pallet 800×1200 mm taken lengthways | Ast | mm | 2820 | |
| 4,35 | Turning radius | Wa | mm | 1650 | |
| 4,37 | Hull length | l7 | mm | 1780 | |
| Operating parameters | 5,1 | Running speed, loaded/empty | km/h | 10.5/10.5 | |
| 5,2 | Lifting speed, loaded/empty | m/s | 0.4/0.5 | ||
| 5,3 | Lowering speed, loaded/empty | m/s | 0.45/0.45 | ||
| 5,4 | Boom speed, loaded/empty | m/s | 0.1 / 0.1 | ||
| 5,8 | Maximum climbable hill, loaded/empty | % | 10/15 | ||
| 5,10 | Service brakes | Hydraulic/electric | Hydraulic/electric | ||
| Engine | 6,1 | Running engine power S2, 60 min | kW | 6.4/7 | |
| 6,2 | Lifting engine power S3, 15% | kW | 12,5 | ||
| 6,4 | Battery capacity, nominal capacity K5 | V/Ah | / | ||
| Lithium battery capacity | V/Ah | 51.2/350 | |||
| 6,5 | Battery weight | kg | 250 | ||
| Others | Engine and gears | Engine type | AC | ||
| Noise | Noise level in the operator's ear according to EN 12053 | dB(A) | 68 |

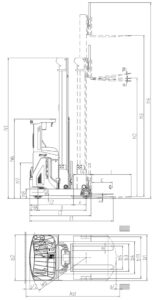

Drawing
