Description

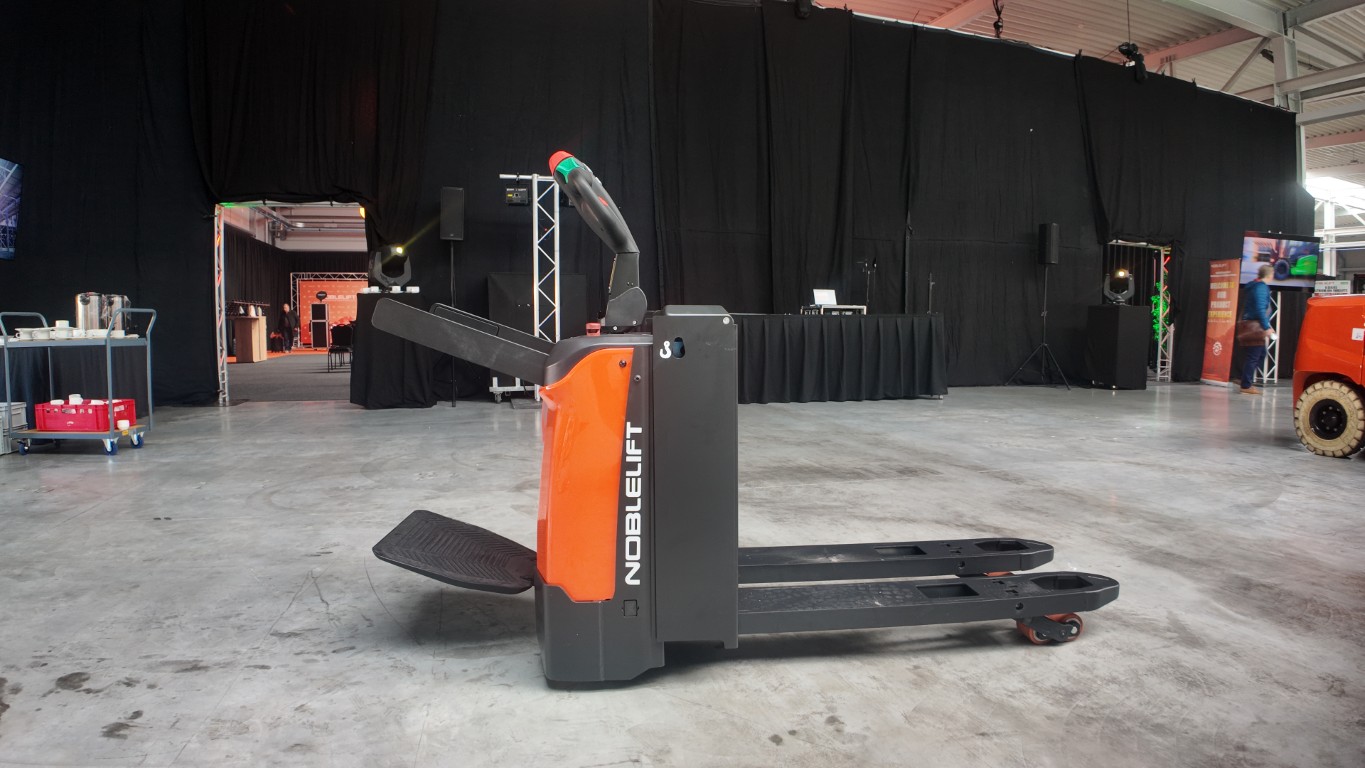

Noblelift's new range of electric pallet trucks combines all the experience gained by the manufacturer over the years. Using cutting-edge solutions and top-quality components, the new range is ready to provide its users with the highest level of performance. During the design phase, several priorities and details were considered and tested, such as improving the lifetime and performance of the trolleys and ease of maintenance.
Key benefits:
1. With a new generation, European certified Lithium Iron Phosphate battery 24V150Ah and 24V60A charger
2. High frequency charger. Extends battery life.
3. Designed for professional work at a low price
4. Engine - German Schabmüller
5. Gear reducer - German ZF
6. Controller - Italian Zapi
7. Control handle - REMA, Germany
8. With power steering
9. Wheels - already original with WICKE, Germany and they are larger diameter than usual on the market
10. Full metal housing
11. 4-wheel structure (has two support wheels)
12. All electronics, engine design for fast and efficient repairs, minimising maintenance and repair costs.
A powerful AC motor from the world's industry leaders: a Schabmuller-designed and manufactured AC motor combined with a top-quality ZF gearbox and a built-in Intorq electromagnetic brake. The drive is capable of speeds up to 8 km/h. The use of top quality drive wheels from German manufacturers Rader Vogel or Wicke helps to ensure a long wheel life.
The steering controllers and steering wheel controllers are manufactured by Zapi (Italy), a leading European brand with a long history in the industry, offering highly reliable and flexible solutions and a high level of control system performance.
The range can be equipped with Electric Power Steering (EPS), which provides precise and fast steering control and is highly reliable and safe according to official standards.
„The Rema control handle ensures a high level of ergonomics and reliability of the control system. In addition, the handle ensures a long service life thanks to the contactless lever switches for the lift/lower function.
The 8 mm thick metal construction ensures the chassis is robust even in the event of collisions with objects. The solid steel battery container helps to ensure the strength of this part.
The integrated operator platform and safety handles, as well as an all-new internal design, ensure the smallest body length and a particularly small turning circle amongst competitors. Combined with this, the platform suspension system helps to provide operators with a high level of comfort.
| Manufacturer / model | Noblelift Europe, PT 20Li |
| Type | Fully electric |
| Lifting capacity, kg. | 2000 kg |
| Lifting height, mm. | 200 mm. |
| Fork length, mm. | 1150 mm. |
| Wheel base | 1330 mm. |
| Overall height/width/length, mm. | 1350x790x1790 mm. |
| Own weight, kg. | 505 kg. |
| Turning radius, mm. | 1422 mm. |
| Full turning circle, mm. | 2086 mm. |
| Driving speed | 7,5/8 km/h |
| Driving engine power | 1,4 kW |
| Lifting engine power | 0,8 kW |
| Battery LIQUID ION | 24V150Ah with Lithium Iron Phosphate battery |
| Warranty | 12 months |
| Delivery term | 2 weeks |
| Engine | German Schabmüller |
| Reducer | German ZF |
| Controller | Italian Zapi |
| Control handle | German REMA |
| Castors | German WICKE |
| Power steering | Yes - there is |
| Operator platform and safety handles | Yes - there is |
