Key benefits
Excellent performance
Durability
The mast is made of premium C&J hot-rolled steel. Main electrical parts with waterproof connectors, complete with LED bulbs Special clamp to fix and divide different types of piping to avoid contamination.
Good visibility and other features
Lower dashboard height.

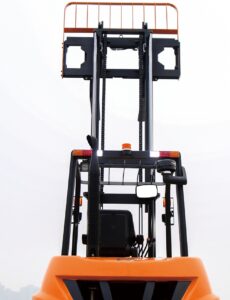

Roof protection with high visibility
New positioning of lifting chain and hoses behind the mast profile
Top crossbar of the load securing frame rotated 50° downwards for better visibility
Better cooling and air intake
Optimised cooling duct
Extra-large plate type radiator
Excellent heat exchange system
Optimised exhaust layout to reduce passive pressure
High air intake with two-stage filters to improve engine intake air quality
Technical specifications
| 1 | Type | 4WD | 2WD | |||||
| 2 | Model | FD4RT25 | FD4RT35 | FD2RT25 | FD2RT35 | |||
| 3 | Type of power plant | Diesel | ||||||
| 4 | Lifting power | Kg | 2500 | 3500 | 2500 | 3500 | ||
| General parameters and dimensions | ||||||||
| 5 | Centre of gravity | mm | 500 | |||||
| 6 | Free lift height | mm | 1135 | 1135 | 1133 | 1135 | ||
| 7 | Fork dimensions | LengthxWidthxHeight | mm | 1220x122x40 | 1220x125x45 | 1220x122x40 | 1220x125x45 | |
| 8 | Fork adjustment range | Min./Max. | mm | 250-1310 | 250-1500 | 250-1310 | 250-1500 | |
| 9 | Possible angle of inclination of the boom | Front/rear | Deg | 10°/12° | ||||
| 10 | Distance from the front of the body to the centre of the front wheel | mm | 580 | 595 | 580 | 595 | ||
| 11 | Distance from the centre of the rear wheel to the rear of the body | mm | 605 | |||||
| 12 | Min. distance from ground to cab (front axle) | mm | 220 | |||||
| 17 | Basic dimensions | Length without forks | mm | 3070 | 3085 | 3070 | 3085 | |
| Overall width | mm | 1450 | 1600 | 1557 | 1600 | |||
| Height of lowered boom | mm | 2440 | 2440 | 2315 | 2315 | |||
| Lifting height | mm | 4700 | 4700 | 4700 | 4700 | |||
| Height of protective frame | mm | 2260 | 2280 | 2260 | 2280 | |||
| 18 | Turning radius | mm | 3080 | 3080 | 2859 | 2859 | ||
| 19 | Min. width of the right-hand corner working corridor (add the length of the load to the value given, plus at least 200 mm for a margin) | mm | 2630 | 2690 | 2680 | 2690 | ||
| Operating parameters | ||||||||
| 20 | Speed | Driving (With weight/Without weight) | Km/h | 19/20 | 18/19 | 19/20 | 21/22 | |
| 21 | Lifting (With weight/Without weight) | mm | 600/620 | 480/500 | 570/590 | 450/470 | ||
| 22 | Lowering (With/without weight) | mm | 440 | |||||
| 23 | Max. Pulling power (with weight) | KN | 38 | 38 | 17 | 17 | ||
| 24 | Max. Max. climb (with weight) | % | 50 | 45 | 20 | 16 | ||
| Tyres | ||||||||
| 26 | Tyres | Front | 12-16.5-12PR | 14-17.5-14PR | 12-16.5-12PR | 14-17.5-14PR | ||
| Rear | 10.0/75-15.3 | 10.0/75-15.3 | 27×10-12-12PR | 27×10-12-12PR | ||||
| 28 | Width of the turtle | Front | mm | 1125 | 1250 | 1250 | 1250 | |
| Rear | mm | 1198 | 1198 | 1205 | 1205 | |||
| 29 | Wheel base | mm | 1880 | 1880 | 1880 | 1880 | ||
| 30 | Own weight | kg | 4850 | 5460 | 4500 | 5180 | ||
| Weight | ||||||||
| 31 | Weight distribution | With weight | Front axle | kg | 6600 | 7750 | 6000 | 7700 |
| 32 | Rear axle | kg | 750 | 1200 | 1000 | 980 | ||
| 33 | Without weight | Front axle | kg | 2180 | 2500 | 1810 | 2070 | |
| 34 | Rear axle | kg | 2670 | 2960 | 2690 | 3110 | ||
| Galia&Pavara | ||||||||
| 35 | Battery | Voltage/Voltage | V/Ah | 12/90 | 12/90 | 12/90 | ||
| 37 | Spring | Retrieved from | China, some of the main components are Japanese | |||||
| Tiered | Front/Rear | 2/1 | ||||||
| 38 | Operating pressure (for Accessories) | Mpa | 20 | |||||
