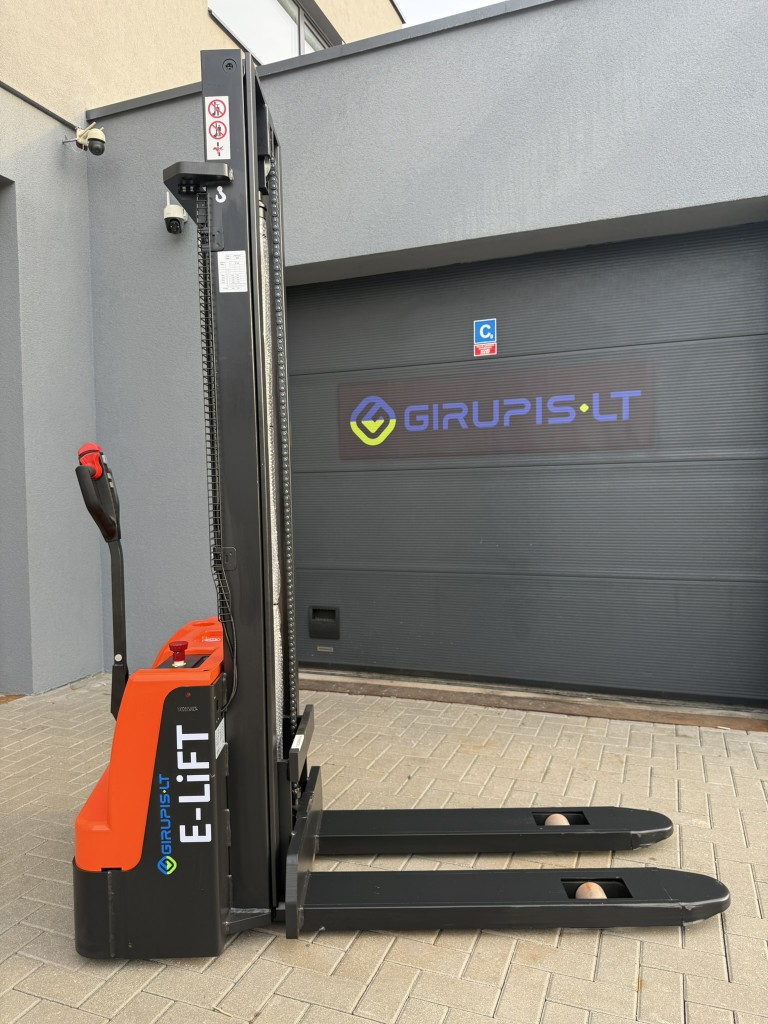

Description
Key highlights and distinctive features
A. Extended joystick meets ergonomic and safety requirements
The extended tiller ensures efficient operator operation and a safe distance from the pallet jack. Compared to a shorter tiller, the extended tiller uses less manpower. In addition, the safe distance and good visibility allow for more efficient and faster work.
B. Maintenance-free lead-acid batteries
Supplied with maintenance-free lead acid batteries (AGM's) with over-discharge protection. Loaded AGM batteries are not afraid of frost.
C. Stabilisation wheels
Convenient adjustment of the stabiliser wheels without having to lift the lift.
D. Boom mechanism
The reinforced fork mast (boom) ensures the stability of the hoist and longer service life.
E. Cargo support (optional)
A high-quality load support, available as an option, ensures the stability and security of the goods, especially when lifting upwards

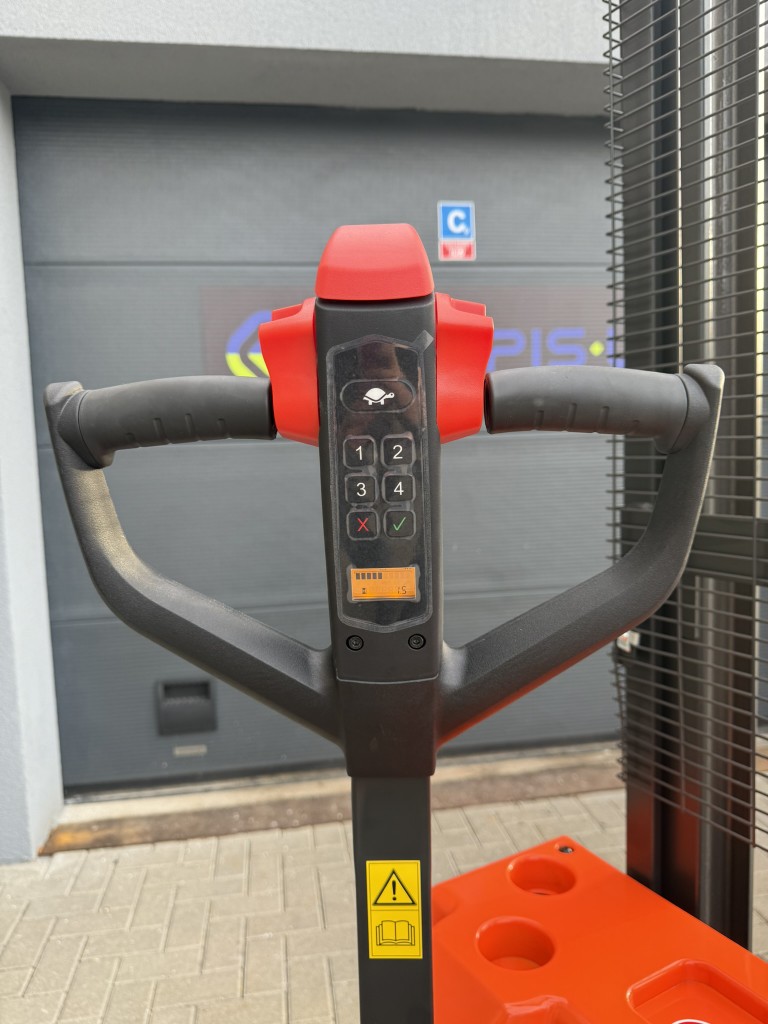

F. Multi-function display and control panel
The multi-function display shows the lift's operating status, battery charge and moto hours. The updated and reliable emergency button and information indicator are durable and more reliable compared to other lifts. The battery discharge indicator has battery low voltage protection when disconnecting the lifting function, resulting in longer battery life.
G. Electric actuators
The PSE15L-C uses a CURTIS actuator with CAN-BUS communication technology for fast and efficient fault detection with the added advantage of intuitiveness, allowing timely response and easy troubleshooting
I. Connector for programming
Quick access to the connector without having to remove the protective cover. Any programming work is therefore carried out quickly
Technical specification
| General parameters | 1.2 | Model | PSE15L-C, 2900 | |
| 1.3 | Type of power plant | Power Station | ||
| 1.4 | Method of management | Going from behind | ||
| 1.5 | Lifting power | Q(t) | 1.5 | |
| 1.6 | Centre of gravity | C(mm) | 600 | |
| 1.8 | Lifting arm | X(mm) | 770 | |
| 1.9 | Wheel base | Y(mm) | 1220 | |
| Weights | 2.1 | Own weight | kg | 465 |
| 2.2 | Axle load front/rear (loaded) | kg | 622/1343 | |
| 2.3 | Axle load front/rear (unladen) | kg | 302/163 | |
| Castors | 3.1 | Castors | Polyurethane（PU） | |
| 3.2 | Wheel size, front | F x w (mm) | Ф220×70 | |
| 3.3 | Wheel size, end | F x w (mm) | Ф80×70 | |
| 3.4 | Extra wheels (dimensions) | F x w (mm) | Ф100×50 | |
| 3.5 | Number of wheels front/rear (X - drive wheels) | 1x+1/2 | ||
| 3.6 | Front track | b10(mm) | 557 | |
| 3.7 | Rear track | b11(mm) | 410/525 | |
| Dimensions | 4.2 | Height of the lowered boom | h1 (mm) | 1932 |
| 4.3 | Free lifting | h2 (mm) | 78 | |
| 4.4 | Lifting progress | h3 (mm) | 2813 | |
| 4.5 | Height of raised boom | h4 (mm) | 3339 | |
| 4.9 | Height of the joystick in working position, min/max. | h14mm | 670/1228 | |
| 4.15 | Height of lowered forks | h13mm | 87 | |
| 4.19 | Total length | l1(mm) | 1779 | |
| 4.20 | Length without forks | l2(mm) | 629 | |
| 4.21 | Overall width | b1(mm) | 820 | |
| 4.22 | Fork dimensions DIN ISO 2331 | s/ e/ l(mm) | 60/180/1150 | |
| 4.25 | Fork width | b5 (mm) | 570 | |
| 4.32 | Clearance at the centre of the wheel base | m2(mm) | 27 | |
| 4.33 | Working corridor with pallet 1000×1200 mm taken across | Ast (mm) | 2324 | |
| 4.34 | Working corridor with pallet 800×1200 mm taken lengthways | Ast (mm) | 2269 | |
| 4.35 | Turning radius | Wa (mm) | 1481 | |
| Operating parameters | 5.1 | Running speed, with/ without weight | km/h | 4.30/4.65 |
| 5.2 | Lifting speed, with/ without weight | m/s | 0.096/0.155 | |
| 5.3 | Lowering speed, with/ without weight | m/s | 0.125/0.117 | |
| 5.8 | Maximum climbable hill, with/ without weight | % | 45787 | |
| 5.10 | Service brakes | Electromagnetic | ||
| Engines and drives | 6.1 | Running engine power S2 60min | kW | 0.75 |
| 6.2 | Lifting engine power S3 10% | kW | 2.2 | |
| 6.3 | Battery DIN 43531/35/36 | from | ||
| 6.4 | Battery voltage and capacity | V/Ah | 2x12V 100Ah | |
| 6.5 | Battery weight | kg | 2×39 | |
| 6.6 | Energy consumption according to DIN EN 16796 | kWh/h | 0.8 | |
| Others | 8.1 | Type of drive for the driving motor | DC | |
| 8.4 | Noise level in the operator's ear according to EN 12053 | db(A) | <70 |

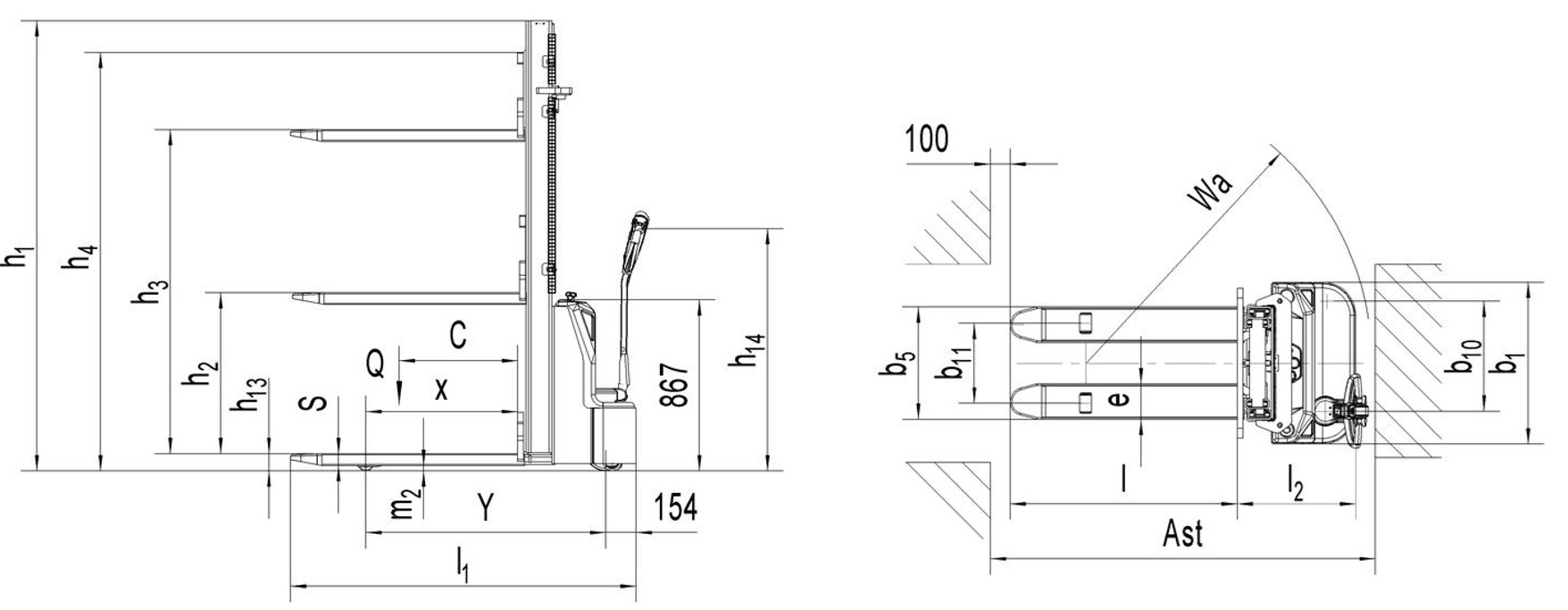

Drawing
