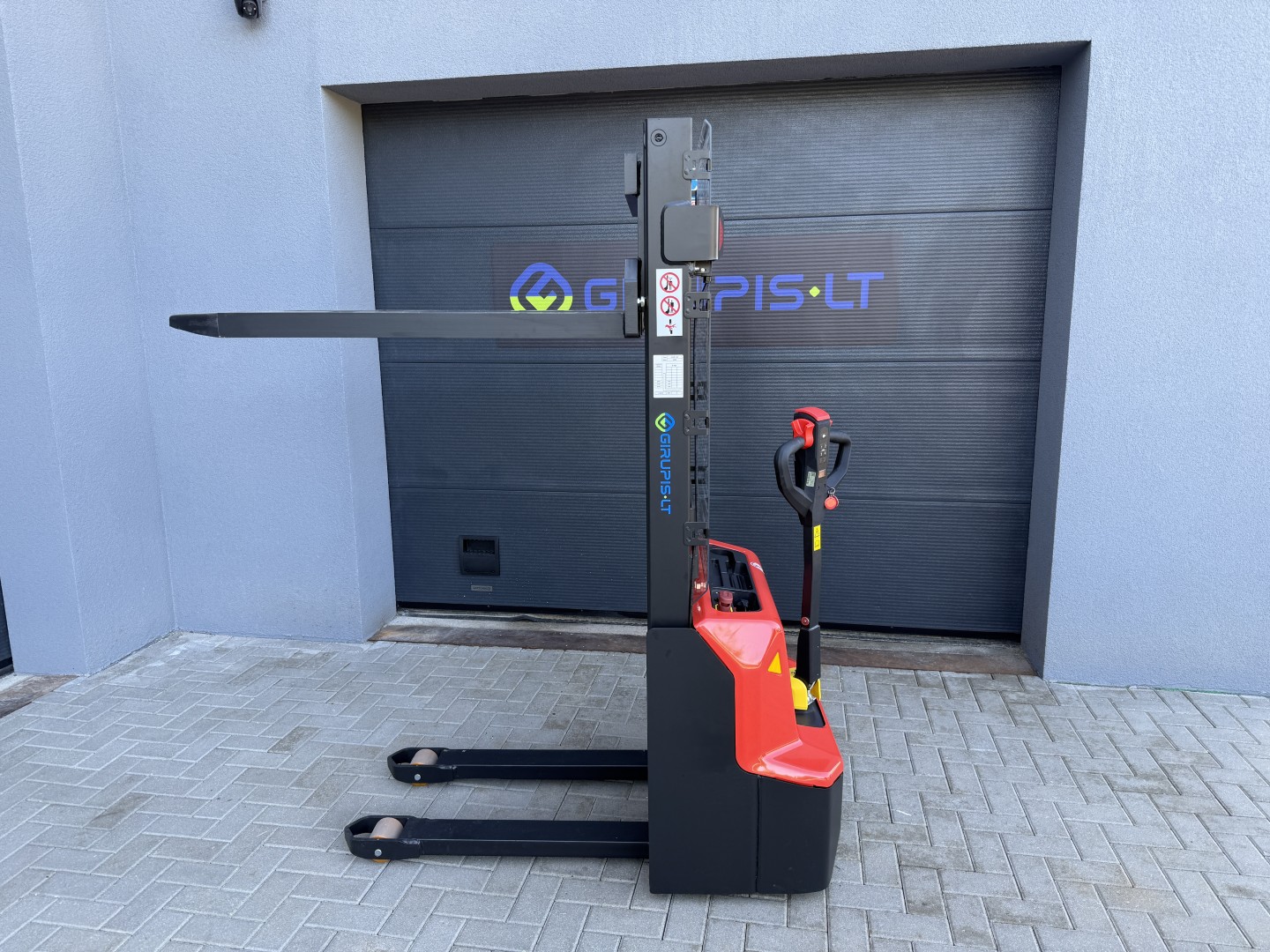

Noblelift SWB 130 self-propelled electric stacker with free lift

  • The SWB 130 has a free lift and a soft lift start, making it ideal for low-lying areas or when gentle handling is required.
  • Supplied with maintenance-free AGM batteries, you can charge these stackers anywhere, anytime.
  • Lifting capacity increased to 1.3t, expanding the range of applications, lifting height 2900 mm, free lift ~1500 mm, construction height 1970 mm
  • A gentle lifting start allows for more stable and controllable lifting operations.
  • The stability and performance of the stacker is greatly improved by the use of specialised CJ profiles for the construction of the true lifting mast and the use of adjustable mast bearings
  • The ability to steer the lift with the upright arm allows safe driving in tight spaces such as trucks and/or lifts or when you need to place a load in a confined space

3500,00 € (including VAT: 4235,00 €)

In Stock

Delivery time: 1 - 3 business days

SKU: SWB130 Category: Brand:

Description

NOBLELIFT SWB-130

  • An external programming connector allows fault diagnosis without removing the lid. Convenient and quick maintenance.
  • Patented chain torsion structure with high strength.
  • Standard cornering deceleration provides stability and safety in high angle corners.
  • The support wheel has a convenient clamping force adjustment
External Can-Bus connector for quick diagnostics and parameter changes The support wheel mechanism has a convenient clamping force adjustment

Ergonomic and smart tiller

The ergonomically designed tiller arms have comfortable soft grips for comfortable daily work. All buttons are large and easy to reach for operators, even when wearing gloves. Integrated PIN code panel with LCD display for intelligent operation and handling.



Full technical specification

1.2 Model SWB-130, 2900 FFL
1.3 Power supply Battery
1.4 Control type Pedestrian (walk-behind)
1.5 Lifting capacity / rated load Q (t) 1.3
1.6 Load centre c(mm) 600
1.8 Load distance, centre of drive axle to fork x(mm) 710
1.9 Wheel base y(mm) 1097
2.1 Service weight Kg 715
2.2 Axle load, front/rear loaded Kg 580/1435
2.3 Axle load, unladen front/rear Kg 500/215
3.1 Wheels Polyurethane (PU)
3.2 Wheel size, front (mm) 210X75
3.3 Wheel size, rear (mm) 84×93
3.4 Additional wheels (dimensions) (mm) 100 x 50
3.5 Wheels, number of front/rear wheels (x = drive wheels) 1x +1/2
3.6 Front track width b10 (mm) 550
3.7 Rear track width b11 (mm) 400/515
4.2 Lowered mast height h1 (mm) 1970
4.3 Free lift height h2 (mm) 1300
4.4 Lifting height h3 (mm) 2810
4.5 Extended mast height h4 mm 3300
4.9 Tiller arm height min./max. h14 (mm) 710/1150
4.15 Lowered fork height h13 (mm) 90
4.19 Total length l1(mm) 1710
4.20 Length to fork back l2(mm) 560
4.21 Overall width b1 (mm) 800
4.22 Fork dimensions a/p/l (mm) 60/180 / 1150
4.25 Outer fork width b2(mm) 570
4.32 Ground clearance, centre of wheelbase m2 (mm) 24
4.33 Working corridor with pallet 1000X1200 taken across Ast (mm) 2167
4.34 Working corridor with longitudinal pallet 800Xl200 Ast(mm) 2133
4.35 Turning radius Wa(mm) 1300
5.1 Travel speed, loaded/unloaded km/h 4.2/4.5
5.2 Lifting speed, loaded/unloaded m/s 0,10/0.14
5.3 Lowering speed, loaded/unloaded m/s 0.13/ 0,11
5.8 Maximum hill climbing capacity, loaded/unloaded % 10 %
5.10 Service brake Electromagnetic
6.1 Drive motor power S2 60 min kW 0.65
6.2 Lift motor power S3 7.5% kW 2.2
6.3 Battery connected to DIN 43531/35/36 A, B, C, NR No
6.4 Battery voltage, nominal capacity C2 V/Ah 2x12V106Ah AGM
6.5 Battery weight +/-5% Kg 2×34
6.6 Energy consumption per VDI cycle KWh/h 0.68
8.1 Drive control type DC
8.4 Sound level at the driver's ear according to EN 12053 dB (A) <70

Additional information

Weight 715 kg
Dimensions 1710 × 800 × 1970 mm
Manufacturer
Noblelift
Type
Electric self-propelled stacker
Model
SWB-130
Lifting capacity (kg)
1300
Lifting height (mm)
2900
Lift on support arms
No
System voltage, V
24V
Battery type
AGM
Battery capacity, Ah
106
Mast type
Duplex with free lift
Fork length (mm)
1150
Fork width (mm)
560
Steer wheels
Polyurethane
Fork wheels
Polyurethane
Load wheel type
Single
Drive
CURTIS
Free lift, mm
1300
Cabin options
Load protection frame only
